MSD DIS-4

SKU
msd62152
จำนวน
ราคา
27,000.00 บาท

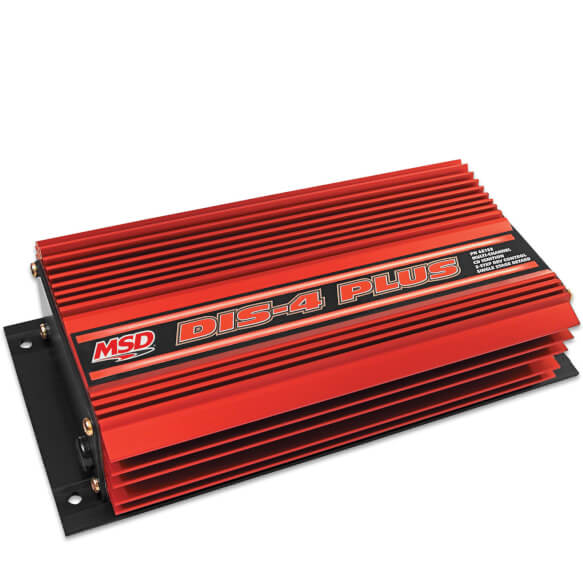

MSD’s DIS-4 Ignition Control is designed for engines with coil pack, waste spark ignition systems and is capable of firing up to four coil packs (or even four individual coils). Each Control delivers full power Capacitive Discharge sparks from idle through racing rpm. Below 3,000 rpm there is a series of multiple sparks that last for up to 20° of crankshaft rotation to improve idle, starting and throttle response. The adjustable features of the DIS Ignition includes an over-rev limiter and the holeshot rev limit. Also, there is a step retard that can be wired directly to a nitrous system or switch for activation! These are adjustable with rotary dials.

Features:

  • Two Step Rev Control
  • Step Retard
  • LED Monitor
  • Features are adjustable with rotary switches
BrandMSD
Current Draw 6.6 Amps at 10,000 RPM
Emission Code3
Primary Voltage460-480 Volts
Product TypeIgnition
RPM Range14,000 RPM with 14.4 Volts
Secondary Voltage40,000 Volts
Spark Energy105-115 mJ/spark
Spark Series Duration20 degree Crankshaft Rotation
Voltage Required10-18 Volts, Negative Ground
Weight and Size4.5 lbs.,9.5"L x 4.5"W x 2.2"H
×
